How to Identify a Jasper or Falcon Xbox 360

How to Identify a Jasper or Falcon Xbox 360
Published by forahobby on 2008-12-30
Category: Xbox 360 | Page Views: 105085

Introduction
This tutorial will explain in detail how you can easily identify the two most recent Xbox 360 consoles code named "Jasper" and "Falcon". This way you can be sure you are purchasing the latest xbox 360 which will run cooler, quieter and use much less power.



Table of Contents
How to Identify the Console
1. The Xbox 360 box has a hole cut-out of the top of the cardboard where the bar code is visible. Find this hole and look at the lower left corner of the xbox 360 console. See detailed picture attached below.



2. Look at the amperage/voltage rating of the unit which is marked in this area and read the detailed info below and check out the pics to determine which series of xbox 360 console you are looking at.

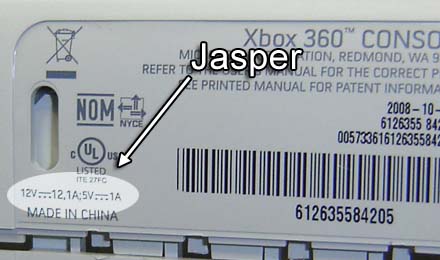

Identify a "Japser" Xbox 360 Console
To easily identify a new "Jasper" Xbox 360 just looked closely at the amperage/voltage rating of the unit.. 12.1 amps equals a Jasper unit (65nm CPU, 65nm GPU).

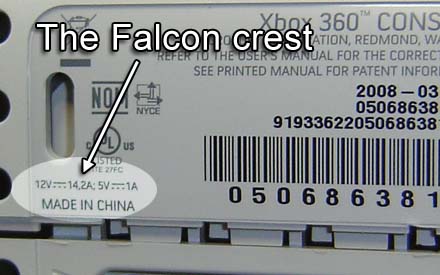

Identify "The Falcon" Xbox 360 Console
To easily identify the older but still worthy "Falcon" Xbox 360 look closely at the amperage/voltage rating of the unit.. 14.2 amps equals a Falcon unit (65nm CPU, 90nm GPU)



All Xbox 360 Console Versions

Xenon (launch 2005)
- Launch model
- Red Ring of Death / heat issues
- 203 Watt powersupply / 12V rated 16.5A

Zephyr (early 2008) - HDMI output
- Extended GPU cooler
- 03 Watt powersupply / 12V rated 16.5A
- More Zephyr details

Falcon (late 2007)
- 65 nm CPU
- Bigger CPU cooler
- 175 Watt powersupply / 12V rated 14.2A

Opus (mid 2008)
- No HDMI output
- Replacements for Xenon repairs, 65 nm CPU
- 75 Watt powersupply / 12V rated 14.2A

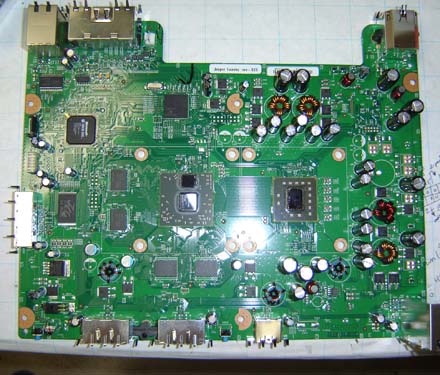

Jasper (later 2008)
- 65 nm GPU (the true way to idenfify a Jasper is by looking at the chip)
- 256 MB internal flash memory
- 150 Watt powersupply / 12V rated 12.1A

As always if you have any further questions or would like to post your own info about the jasper your just bought please see the related topic in our forums which has been linked to below.

Enjoy 360-HQ and check back regularly for all the latest info.


Related URL: Just got a jasper! - Manufacture Dates, Team, Lot
