Convert Phat 360 Hard drive to Slim

Convert Phat 360 Hard drive to Slim
Published by X_Splinter on 2011-12-12
Category: HardDrive | Page Views: 5366

Introduction


This tutorial will explain how to transform your xbox 360 phat Hardrive into a Xbox 360 Slim Hardrive.

360-Hq.Com and it's staff DO NOT and WILL NOT take responsibility for users who damage their own equipment in any way, shape or form.

1. Things You Need:
    1.1. A Phat 360 Hardrive
    1.2. T6 and T10 Torx screwdriver
    1.3. Flathead screwdriver
    1.4. (Optional) A Slim Hardrive enclosure

2. Installing:

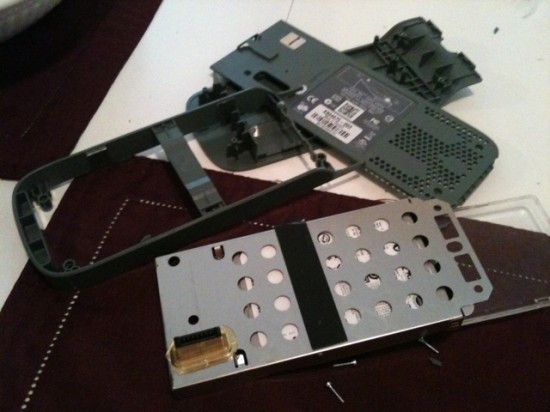

1- Take apart the phat hardrive( It's easy just unscrew all the 8 screws an open it)


2- Remove the 2.5” SATA hardrive from it (it is held in place by 4 T10 screws, and is connected by a standard SATA connector. Remove the screws and pull the drive out.)

3- On the bottom of the Xbox slim is a removable plate. Push the tab in and pull it off

4- Place the Hard drive inside the Slim enclosure (Optional - Recommended)

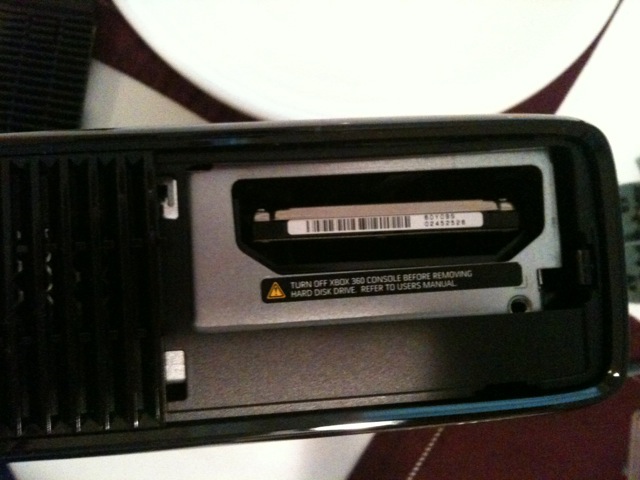

5- Line the hard drive up with the SATA tabs (make sure you have it facing the right direction, one connector is smaller than the other), then push it in until it clicks.



6- Put the cover back on the Xbox slim, and you’re done!
