360-HQ.COM :: How to build a xbox 360 original console hard drive case?
How to build a xbox 360 original console hard drive case?
360-HQ.COM Forum Index -> Xbox 360 Case/Hardware modding Discussions
Post new topic Reply to topic
 How to build a xbox 360 original console hard drive case? View previous topic :: View next topic




halofan102
Moderator
Moderator




Joined: Jan 17, 2013
Posts: 451
Location: Murica
XP: 18,192

Post Posted: Sat Sep 28, 2013 9:41 pm
Post subject: How to build a xbox 360 original console hard drive case?
Reply with quote

Hello all,

I have an original xbox 360 arcade console. It comes with no memory of its own. My friend gave me his 256MB memory card for game saves.

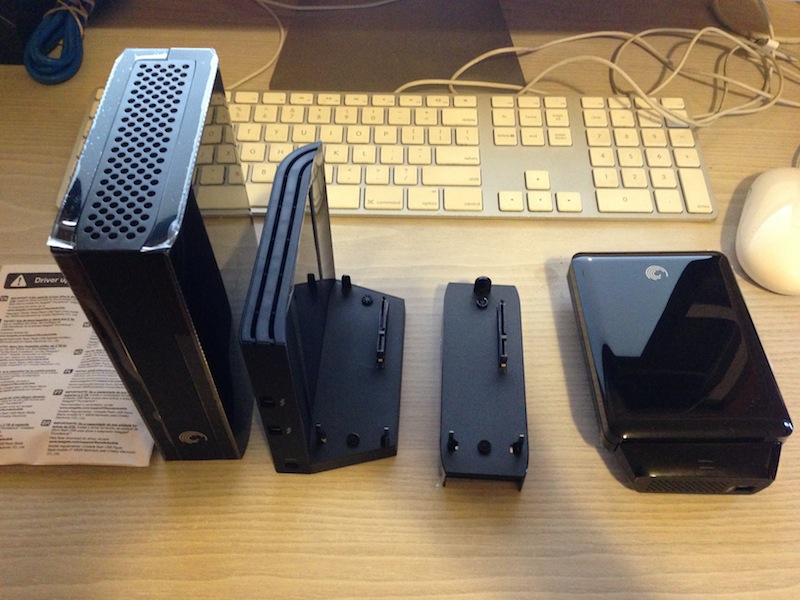

I saw this video on youtube of how to take apart an xbox 360 hard drive enclosure



It was quite informative. It seems all xbox 360 hard drives basically contain laptop sized HDD connected to what appears to a USB to SATA male plug (second object from right)


Instead of paying money online to buy a hard drive enclosure, building one myself sounds more fun!

If I wanted to make a jury rigged enclosure, it would obviously need a laptop drive connected to that plug that fits into an xbox 360. What is the name of the port found on xbox 360's for hard drive enclosures to plug into?



Can anyone point in the right direction for a tut on this?



 Description:
 Filesize:  142.42 KB
 Viewed:  905 Time(s)





View user's profile Send private message Visit poster's website




forahobby
Administrator
Administrator




Joined: May 22, 2003
Posts: 23942
Location: NSW, Australia
XP: 3,060,024

Post Posted: Sun Sep 29, 2013 3:20 am
Post subject: Re: How to build a xbox 360 original console hard drive case
Reply with quote

halofan102 wrote:
If I wanted to make a jury rigged enclosure, it would obviously need a laptop drive connected to that plug that fits into an xbox 360. What is the name of the port found on xbox 360's for hard drive enclosures to plug into?



Can anyone point in the right direction for a tut on this?


That is one hell of a good question. I will see what i can dig up for you. Only experience i've had with the older hard drives was upgrading them with HDDHacker.. I doubt this will help you but here's a link for anyone who might be looking to upgrade their hdd themselves.

Upgrade your Xbox 360 HDD Using HDDHackr
http://www.360-hq.com/xbox-tutorials-64.html

Update: I just found this hope it helps: YOu can buy a aftermarket hdd kit for around $7.99 USD here - http://store.weekendmodder.com/product_info.php?cPath=28&products_id=57 - Then all you have to grab is a western digital hdd and use hddhcker.

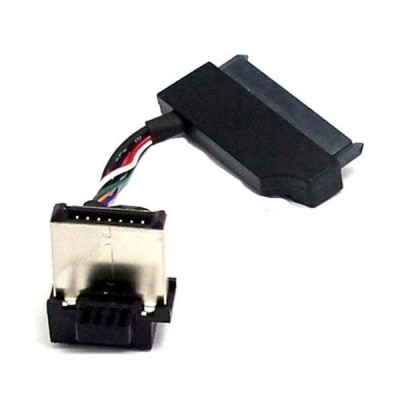

Another connector i found was this one.. I think it's the one your looking for. See pic in the attachment and this link: http://www.xmods.co.za/storage/448-xbox-360-hard-drive-connector-cable.html



Finally I was just going to ask you if you have attempted to just attach an external USB drive to the Xbox 360 and install your DLC and other apps onto that? I'm pretty certain you can, but not sure about installing games.



 Description:
Xbox 360 Hard Drive Connector Cable
 Filesize:  30.74 KB
 Viewed:  894 Time(s)
