Joined: Jun 27, 2007 Posts: 1135 Location: Melbourne, Australia XP: 57,060
Posted: Wed Jul 21, 2010 11:52 am Post subject: Joypad trigger solder points!
In preparation of getting my Jtag and putting mame on it, and the fact that i will never get round to building the arcade machine that i want, I am making an arcade joystick for the 360 using a wireless joypad.
All is good, got the joystick mapped, got my design all set and all the buttons connected with the exception of the left and right triggers
On the underside of the joypad pcb there are 3 solder points for each trigger. Does anyone know which 2 points to use? _________________________________________________________ Opinions are like arse holes, everybody has one and your's stinks.
forahobby Administrator
Joined: May 22, 2003 Posts: 23948 Location: NSW, Australia XP: 3,060,914
Posted: Sat Jul 24, 2010 9:26 am Post subject: Re: Joypad trigger solder points!
Div wrote:
In preparation of getting my Jtag and putting mame on it, and the fact that i will never get round to building the arcade machine that i want, I am making an arcade joystick for the 360 using a wireless joypad.
All is good, got the joystick mapped, got my design all set and all the buttons connected with the exception of the left and right triggers
On the underside of the joypad pcb there are 3 solder points for each trigger. Does anyone know which 2 points to use?
hi mate,
yes i do,, i have made my own street fighter arcade stick.

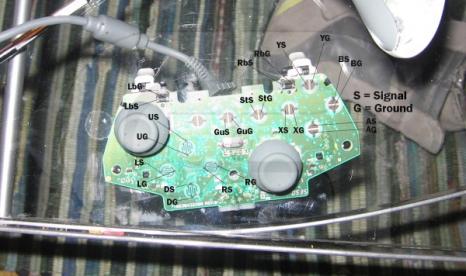

I will link you to a similar tutorial which shows how to wire it up to a wired controller.. ;0
Joined: Jun 27, 2007 Posts: 1135 Location: Melbourne, Australia XP: 57,060
Posted: Sat Jul 24, 2010 10:13 am Post subject:
Hi Hobbs
That was the guide i used to solder the joystick, start/back/power, sholder and colored buttons. I want 8 buttons on mine so need to soler the trigger buttons also which have three solder points each.
Been reading up and i need to solder to 2 of them, the third is not needed. When i get it done i'll post some pics. _________________________________________________________ Opinions are like arse holes, everybody has one and your's stinks.
forahobby Administrator
Joined: May 22, 2003 Posts: 23948 Location: NSW, Australia XP: 3,060,914
Posted: Sat Jul 24, 2010 10:47 am Post subject:
Div wrote:
Hi Hobbs
That was the guide i used to solder the joystick, start/back/power, sholder and colored buttons. I want 8 buttons on mine so need to soler the trigger buttons also which have three solder points each.
Been reading up and i need to solder to 2 of them, the third is not needed. When i get it done i'll post some pics.
thanks mate, just trying to help..
worst case scenario i could open up my old street fighter stick and tell you.. Im pretty darn sure i have all the buttons mapped out.. It's been years now.. lol
