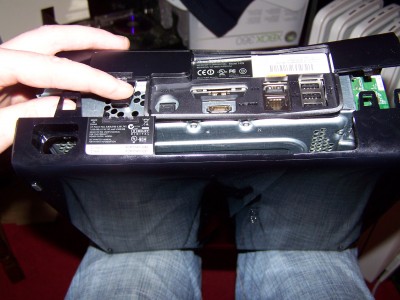

Next step..How to remove the outer shell.

This picture shows,the back of the new 360.

With the side casings unclipped from the back.



Plz take note and take a good look at this pic.

My finger shows the hidden clip behind the warranty sticker.

My thumb shows another release clip,Look to the right of this pic and you will see another 2 release clips.

Ther are 4 release clips on the back of the new 360 all 4 of them have to be released.

Sorry had to edit..agen...Mite have to edit a bit more later.

Enyway next step.

 Description:
Back of the new 360 Unclipped..also shows the 4 clips that have to be released.
 Filesize:  1.18 MB
 Viewed:  364 Time(s)


_________________________________________________________
IXtreme v1.9.
Kreon,Pioneer Burners.
X360USB PRO.
Ck3 probe 3.

Why? Am I here??
No gamer tag.
Unidentified Flashing Object..

NAND-X ...

Xbox 1 moded 2 f--k.
X3 chip.
Digital dissplay.
Xtended.x 3 500gb hard drives

TO MODIFY IS TO BELIEVE
















View user's profile Send private message




ufo1234
V.I.P. Lifetime





Joined: Oct 28, 2008
Posts: 415
Location: Universal
XP: 4,322
Post Posted: Mon Jan 24, 2011 6:48 pm
Post subject: 		Reply with quote

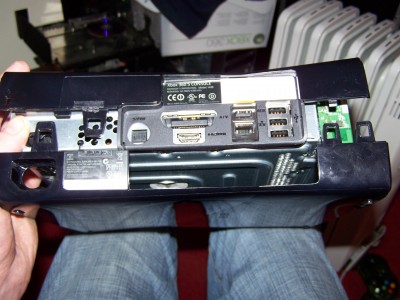

Another viue of the back of the new 360........uncliped.

 Description:
Hope these different views help
 Filesize:  1.03 MB
 Viewed:  346 Time(s)


_________________________________________________________
IXtreme v1.9.
Kreon,Pioneer Burners.
X360USB PRO.
Ck3 probe 3.

Why? Am I here??
No gamer tag.
Unidentified Flashing Object..

NAND-X ...

Xbox 1 moded 2 f--k.
X3 chip.
Digital dissplay.
Xtended.x 3 500gb hard drives

TO MODIFY IS TO BELIEVE
















View user's profile Send private message




forahobby
Administrator
Administrator




Joined: May 22, 2003
Posts: 23948
Location: NSW, Australia
XP: 3,060,914
Post Posted: Wed Jan 26, 2011 5:15 pm
Post subject: 		Reply with quote

Tell you what, i wish they added a shitload more USB outlets on the original design.. I need a slim so bad.. Nice job on the tear apart ufo1234, i've been enjoying reading and viewing your progress!
_________________________________________________________
HQ Network:
www.xbox-hq.com | www.xboxone-hq.com | www.360-hq.com | www.c64-hq.com


View user's profile Send private message Send e-mail Visit poster's website




ufo1234
V.I.P. Lifetime





Joined: Oct 28, 2008
Posts: 415
Location: Universal
XP: 4,322
Post Posted: Wed Jan 26, 2011 6:07 pm
Post subject: 		Reply with quote

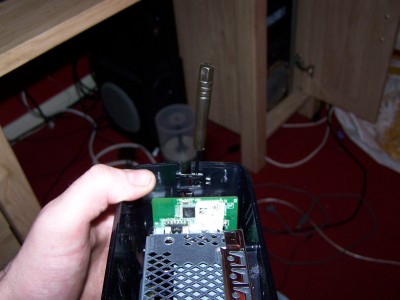

To remove the two outer side panels.

You need to unclip the four release clips,that are located across the back of the new 360 slim.

In this picture im useing a small screw driver to push the clips apart.


Please note..
This picture is the top of the new 360 slim.

I have left the wireless card in place on this picture.

The wireless card will have to be removed,before you remove the outer side panels,because the wireless card will catch,on one of the side panels.

 Description:
Uncliping the rear release clips,so the outer shell can be removed.
 Filesize:  804.69 KB
 Viewed:  679 Time(s)


_________________________________________________________
IXtreme v1.9.
Kreon,Pioneer Burners.
X360USB PRO.
Ck3 probe 3.

Why? Am I here??
No gamer tag.
Unidentified Flashing Object..

NAND-X ...

Xbox 1 moded 2 f--k.
X3 chip.
Digital dissplay.
Xtended.x 3 500gb hard drives

TO MODIFY IS TO BELIEVE
















View user's profile Send private message




ufo1234
V.I.P. Lifetime





Joined: Oct 28, 2008
Posts: 415
Location: Universal
XP: 4,322
Post Posted: Wed Jan 26, 2011 6:27 pm
Post subject: 		Reply with quote

Thanks Hobbs.

I must say this post has taken alot of work so far.

What a mission...

To go wher no man has gone before,ha ha

Got to Razz

More pics at weekend.
_________________________________________________________
IXtreme v1.9.
Kreon,Pioneer Burners.
X360USB PRO.
Ck3 probe 3.

Why? Am I here??
No gamer tag.
Unidentified Flashing Object..

NAND-X ...

Xbox 1 moded 2 f--k.
X3 chip.
Digital dissplay.
Xtended.x 3 500gb hard drives

TO MODIFY IS TO BELIEVE
















View user's profile Send private message




ufo1234
V.I.P. Lifetime





Joined: Oct 28, 2008
Posts: 415
Location: Universal
XP: 4,322
Post Posted: Fri Jan 28, 2011 7:11 pm
Post subject: 		Reply with quote

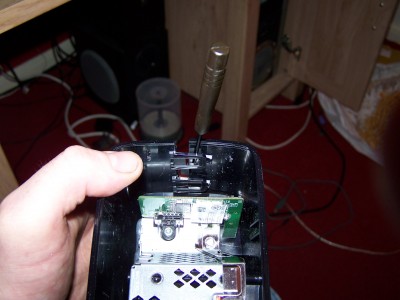

This picture shows a closer viue.
Of the two release clips

 Description:
Uncliping the rear release clips,so the outer shell can be removed.
 Filesize:  907.17 KB
 Viewed:  431 Time(s)


_________________________________________________________
IXtreme v1.9.
Kreon,Pioneer Burners.
X360USB PRO.
Ck3 probe 3.

Why? Am I here??
No gamer tag.
Unidentified Flashing Object..

NAND-X ...

Xbox 1 moded 2 f--k.
X3 chip.
Digital dissplay.
Xtended.x 3 500gb hard drives

TO MODIFY IS TO BELIEVE
















View user's profile Send private message




ufo1234
V.I.P. Lifetime





Joined: Oct 28, 2008
Posts: 415
Location: Universal
XP: 4,322
Post Posted: Mon Jan 31, 2011 9:57 pm
Post subject: 		Reply with quote

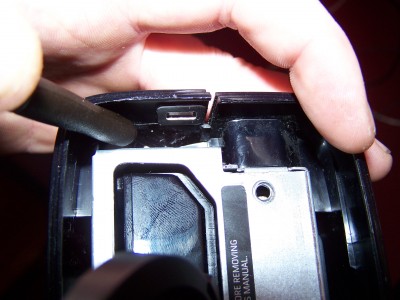

Hear are the other two clips that have to be unclipped ..

This picture shows the bottom of the new 360.(The bottom of the new 360 is wher the hard drive is located)Or fitted.

The top release clip is easy visible in this picture.

The second relase clip is not visiable.

This picture also shows,wher im puting or useing the small screw driver to release,or unclip,the second,release clip..On the hard drive end or,bottom end,of the new 360 slim.

 Description:
How to release the two,release cilps on the bottom side of the new 360.
 Filesize:  1.09 MB
 Viewed:  393 Time(s)


_________________________________________________________
IXtreme v1.9.
Kreon,Pioneer Burners.
X360USB PRO.
Ck3 probe 3.

Why? Am I here??
No gamer tag.
Unidentified Flashing Object..

NAND-X ...

Xbox 1 moded 2 f--k.
X3 chip.
Digital dissplay.
Xtended.x 3 500gb hard drives

TO MODIFY IS TO BELIEVE
















View user's profile Send private message




forahobby
Administrator
Administrator




Joined: May 22, 2003
Posts: 23948
Location: NSW, Australia
XP: 3,060,914
Post Posted: Thu Feb 03, 2011 10:03 pm
Post subject: 		Reply with quote

Congrats ufo1234 on having the no#1 topic over the past 4 weeks on HQ!
Wes213 is coming in 2nd.

You can see your topic and all the other most popular topics by clicking on the "most popular" tab in the active topics area:
http://www.360-hq.com/xbox-active-topics.html

Or from the homepage active topics... Good to see ya getting loads of hits and people viewing what ya been up to.. I've been enjoying it myself.

peace!
_________________________________________________________
HQ Network:
www.xbox-hq.com | www.xboxone-hq.com | www.360-hq.com | www.c64-hq.com


View user's profile Send private message Send e-mail Visit poster's website




ufo1234
V.I.P. Lifetime





Joined: Oct 28, 2008
Posts: 415
Location: Universal
XP: 4,322
Post Posted: Tue Feb 08, 2011 5:31 pm
Post subject: 		Reply with quote

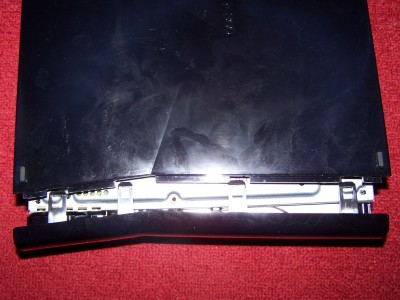

Ok now we have released all of the four rear clips,all we have to to now is lift the bottom side panel from the face plate.

Lift the bottom side panel from the back of the new 360 slim upwards.

Then the side panel will unclip itself from the four clips that hold the bottom side panel to the face plate.

As shown in this picture.

 Description:
The four clips holding the side panel to the face plate.And how they are released.
 Filesize:  1.26 MB
 Viewed:  385 Time(s)
