Posted: Tue May 26, 2009 10:20 pm Post subject: Updated photos of my double window mod..

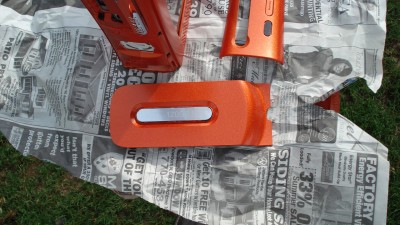

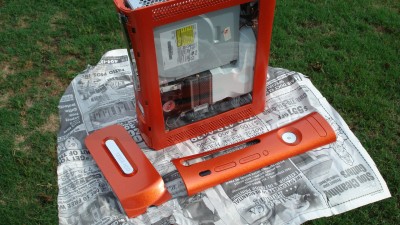

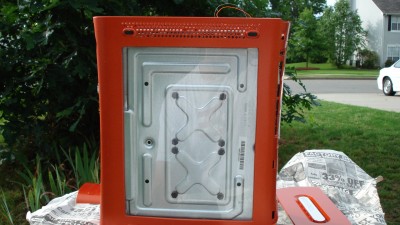

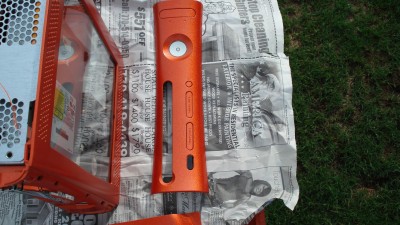

Hi guys, I thought I'd share my progress so far with my double window mod.. Both the top and bottom shell are ready to go but the faceplate, HD shell, and the grill still have fresh paint so I'm going to let them dry overnight.. The only thing I need to change are the led's, still waiting on my amber led's to arrive in the mail, should take about 2 weeks from Hong Kong.. I basically just put everything back together to make sure the case closed.. My biggest fear was that the video port and power plug port wouldn't line up right with the metal chasis . Reason being is that I used a pretty thick piece of glass.. My camer is f**cking me up right now, the actual color is a burnt orange.. This damn camera of mine makes the actaul color look red!!
Description:
Filesize:
843.96 KB
Viewed:
528 Time(s)
Description:
Filesize:
857.55 KB
Viewed:
598 Time(s)
Description:
Filesize:
842.79 KB
Viewed:
516 Time(s)
Description:
Filesize:
844.82 KB
Viewed:
636 Time(s)
_________________________________________________________ Xbox V1.3
Xenium Ice
WD 160Gb HD
I think i might have drooled a bit, nice work man.
elusiv1 V.I.P. Lifetime
Joined: Dec 23, 2004 Posts: 1111 Location: Atlanta, Ga XP: 264
Posted: Wed May 27, 2009 4:04 pm Post subject:
Man I really appreciate it guys, thanks for the support... Can't wait till I go with the all amber led's, I'll post a pic when it's truly finished.. _________________________________________________________ Xbox V1.3
Xenium Ice
WD 160Gb HD
How long does it take you to do something like that? _________________________________________________________
elusiv1 V.I.P. Lifetime
Joined: Dec 23, 2004 Posts: 1111 Location: Atlanta, Ga XP: 264
Posted: Wed May 27, 2009 10:08 pm Post subject:
darth it took 4 days to do everything, day one I spent cutting and sanding the case. Day two was all about priming and painting, so since I started late and waited 30 minutes in between coats it took me all day.. Day 3 I had to redo the clearcoat on all the parts because I wanted more of a glossy look, so again I had to let everything dry overnight... This wasn't necessary because everything would have been dry in a few hours but there was no need to rush and I had nothing going on that day anyways.. The final day I glued the plexiglass windows on the case plus I painted the fan shroud and the DVD drive cover.. I actually made a cutout for my BenQ drive but I had one hell of a time trying make the proper adjustment to the magnet on the dvd case, damn that noise sounded like shit. The grinding sound the disks made pissed me off, seemed like the magnet was faulty so I gave up and put the original cover back on and painted it burnt orange to match the case. _________________________________________________________ Xbox V1.3
Xenium Ice
WD 160Gb HD
Awesome man, just awesome. I'm seriously considering going and buying a used or referbished 360 and send it to you, just so you can mod it for me, lmao _________________________________________________________ ~*~GCGUY~*~
Joined: Dec 23, 2004 Posts: 1111 Location: Atlanta, Ga XP: 264
Posted: Thu May 28, 2009 12:39 am Post subject:
Let me know when your ready brother, we'll work something out. _________________________________________________________ Xbox V1.3
Xenium Ice
WD 160Gb HD
Joined: Dec 23, 2004 Posts: 1111 Location: Atlanta, Ga XP: 264
Posted: Thu May 28, 2009 1:23 am Post subject:
We have clearance, Clarence!! Roger, Roger!! What's you Vector, Victor!!LMAO Looks like a picked a bad day to quit amphetamines!!! I'm chillin out watching Airplane and Hot Shots right now, can't get enough of these classic comedy joints!! Loyd Bridges was one funny mofo, rest in piece Loyd you are surely missed.
_________________________________________________________ Xbox V1.3
Xenium Ice
WD 160Gb HD
