Where can i get 5V inside the 360 to add leds?
360-HQ.COM Forum Index -> Xbox 360 Case/Hardware modding Discussions
Post new topic Reply to topic
 Where can i get 5V inside the 360 to add leds? View previous topic :: View next topic




Tonygnome
360-HQ Experienced
360-HQ Experienced




Joined: Aug 17, 2007
Posts: 107
Location: England, UK
XP: 18
Post Posted: Wed Jan 21, 2009 6:54 pm
Post subject: Where can i get 5V inside the 360 to add leds?		 Reply with quote

Hi, could someone tell me where i can find 5V inside the console, because it isnt as simple as the original xboxes which im use to modding.
Thanks in advance.
_________________________________________________________
My Xboxes >>> http://uk.youtube.com/profile?user=XBMCXBOX <<<

Last edited by Tonygnome on Thu Jan 22, 2009 8:35 pm; edited 1 time in total


View user's profile Send private message Visit poster's website MSN Messenger




graywolf
360-HQ Newbie
360-HQ Newbie





Joined: Jan 21, 2009
Posts: 2

XP: 0
Post Posted: Wed Jan 21, 2009 7:01 pm
Post subject: 		Reply with quote

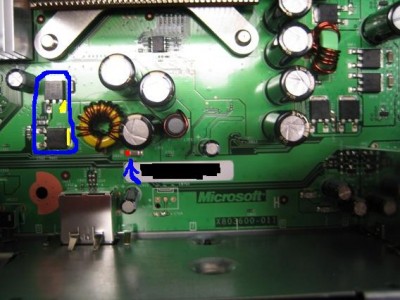

Hi there you can use the 5v where there is the small red dot.
It is not recommended to you where is it cercled in blue.

 Description:
 Filesize:  44.13 KB
 Viewed:  529 Time(s)



View user's profile Send private message




graywolf
360-HQ Newbie
360-HQ Newbie





Joined: Jan 21, 2009
Posts: 2

XP: 0
Post Posted: Wed Jan 21, 2009 7:02 pm
Post subject: 		Reply with quote

I forgot to say that the red dot is the side of the capacitor.


View user's profile Send private message




Tonygnome
360-HQ Experienced
360-HQ Experienced




Joined: Aug 17, 2007
Posts: 107
Location: England, UK
XP: 18
Post Posted: Wed Jan 21, 2009 7:03 pm
Post subject: 		Reply with quote

ok, thanks!
_________________________________________________________
My Xboxes >>> http://uk.youtube.com/profile?user=XBMCXBOX <<<


View user's profile Send private message Visit poster's website MSN Messenger




forahobby
Administrator
Administrator




Joined: May 22, 2003
Posts: 23948
Location: NSW, Australia
XP: 3,060,914
Post Posted: Wed Jan 21, 2009 8:14 pm
Post subject: 		Reply with quote

For anyone who may need more info please check out the following xbox 360 tutorial..

Xbox 360 Voltage Pinout Pics
http://www.360-hq.com/xbox-tutorials-57.html
