Posted: Sat Oct 04, 2008 5:54 am Post subject: My New WIP
Well, ive been out of the scene for a little while work got hectic, work like 3 weeks with no days off, thats what you get when your in the military tho.. Then my grandmother passed so its been kinda a rough couple of months. But we must move on.
Ok so I'm starting a new console. The design is going to be based off my controller, here are some things I plan to do.
1. Make the DVD drive external with fully removable connections
2. Add 2 80mm fans to the top of the console to improve air flow
3. "sink" a magazine and some 45 APC rounds into the top of the case
4. add a 12 in one memory card reader into old DVD tray and hard wired to USB port ( may not do this but its on the table of things to do )
5. and finally a ton of red leds and a pulse VU 2X
Heres some pics of what ive done so far
Description:

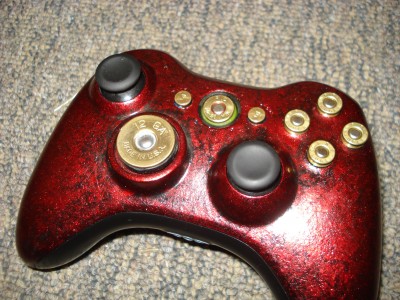

Controller design is based from
Filesize:
2.93 MB
Viewed:
639 Time(s)
Description:

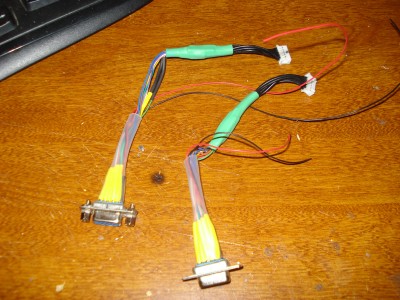

New power cable for DVD drive made from a VGA cable the red and black wires are to get Leds wired up in the External enclosure
Filesize:
3.18 MB
Viewed:
503 Time(s)
Description:

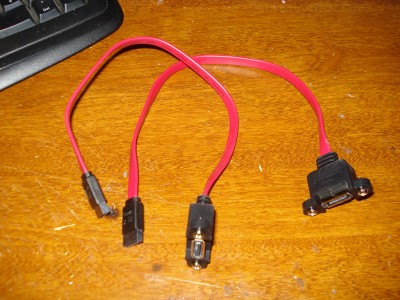

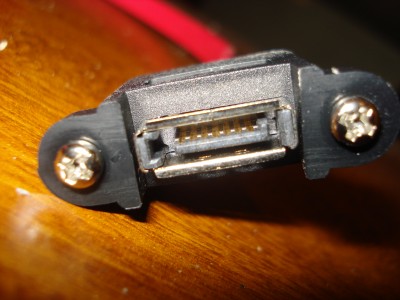

SATA male to female cables
Filesize:
3.19 MB
Viewed:
542 Time(s)
Description:
Filesize:
2.91 MB
Viewed:
499 Time(s)
Description:

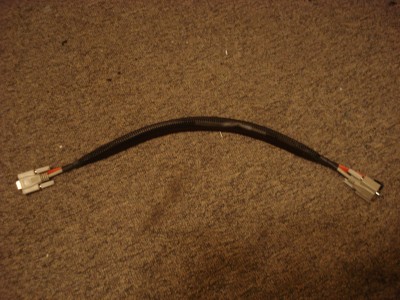

Cable to hook up External DVD drive to Console ( tested and it works )
Moaning about the brand of free beer in a buddy's fridge is forbidden.
However complain at will if the temperature is unsuitable.
X_Splinter Moderator
Joined: Jul 03, 2004 Posts: 2385 Location: Portugal XP: 368,740
Posted: Sat Oct 04, 2008 12:54 pm Post subject:
The console looks great where did you get that case?
You did it yourself... Cool, dont wanna sell one of those?
SCARFACE Administrator
Joined: Feb 06, 2007 Posts: 2470 Location: Minnesota, USA XP: 58,502
Posted: Sun Oct 05, 2008 12:45 am Post subject:
Great work bud looking good that card reader will be quite interesting to see and the final project done will be tight i can see it now Great job keep us up to date. i am still waiting on a couple mods to get done to mine and then i need to pickup a pulsvu 2x too just dont have the funds for it.
Sorry to hear about your grandma passing hope all goes good bro. Im finally picking up more hours at work myself lmao finally. But keep us informed bud.. _________________________________________________________ The one the only Scarface!!
X_Splinter Moderator
Joined: Jul 03, 2004 Posts: 2385 Location: Portugal XP: 368,740
Posted: Sun Oct 05, 2008 12:55 am Post subject:
Thats why i left the army... we have only a few free time.
Sorry for grandmother... may she rest in peace
SCARFACE Administrator
Joined: Feb 06, 2007 Posts: 2470 Location: Minnesota, USA XP: 58,502
Posted: Sun Oct 05, 2008 12:58 am Post subject:
Forgot to say Nice touch on the controller with the Shells lmao thats pimping ha. Does they all function good i wouldn't mind getting a controller like that. _________________________________________________________ The one the only Scarface!!
Joined: Jan 25, 2007 Posts: 1626 Location: Big Stone Gap, VA USA XP: 50,172
Posted: Mon Oct 06, 2008 3:06 am Post subject:
Sorry to hear about your Grandmother bro.
As for the mods, I'm lovin' the controller. The shells are badass. I love the color choice too. Great work on the paint job too. _________________________________________________________
DigitizdSoldier 360-HQ Experienced
Joined: Apr 26, 2008 Posts: 146 Location: Washington XP: 0
Moaning about the brand of free beer in a buddy's fridge is forbidden.
However complain at will if the temperature is unsuitable.
SCARFACE Administrator
Joined: Feb 06, 2007 Posts: 2470 Location: Minnesota, USA XP: 58,502
Posted: Tue Oct 07, 2008 5:22 am Post subject:

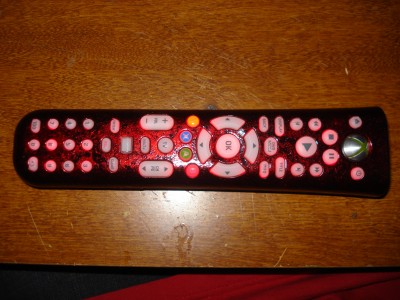

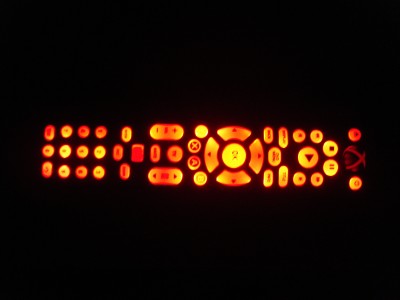

Do u have to put the lights in there for it to light up on that remote thats pretty sweet thats all i need is that and a hd player _________________________________________________________ The one the only Scarface!!
SiK_WiD_iT Moderator
Joined: Jan 25, 2007 Posts: 1626 Location: Big Stone Gap, VA USA XP: 50,172
Posted: Tue Oct 07, 2008 5:28 am Post subject:
Dude thats badass....love it man. Great job _________________________________________________________
