Joined: Apr 26, 2008 Posts: 146 Location: Washington XP: 0
Posted: Tue May 27, 2008 4:18 pm Post subject: Rockstar Games Custom Xbox 360
Well guys ive gotten bored with my 360 so its time for a whole new look i havent started any work yet but will be tomorrow (just waiting on parts) im switching out the red leds in my Xbox for blue and am creating a whole new case for it as a dedication to Rockstar games i will try to update this post everyday with pics and news for yah to see i have the next 2 days off work so thats when alot of the work may get done so check back often i know that my leds and resistors will be here today not sure on the new shell probly thursday but it should be fun
SiK_WiD_iT Moderator
Joined: Jan 25, 2007 Posts: 1626 Location: Big Stone Gap, VA USA XP: 50,172
Posted: Tue May 27, 2008 7:24 pm Post subject:
cant wait to see it man _________________________________________________________
DigitizdSoldier 360-HQ Experienced
Joined: Apr 26, 2008 Posts: 146 Location: Washington XP: 0
Posted: Wed May 28, 2008 5:22 am Post subject:
Hers the first step in the conversion i canged out the LEDs in my whisper fan

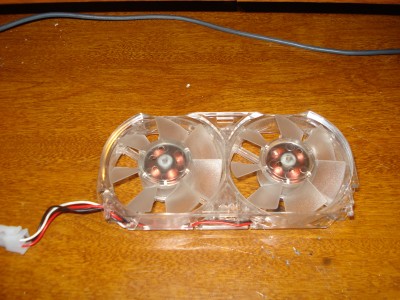

Description:
the fan
Filesize:
3.05 MB
Viewed:
439 Time(s)

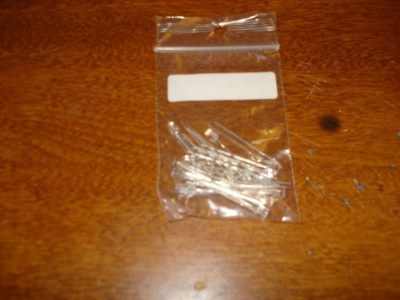

Description:
Replacement LEDs
Filesize:
2.32 MB
Viewed:
318 Time(s)

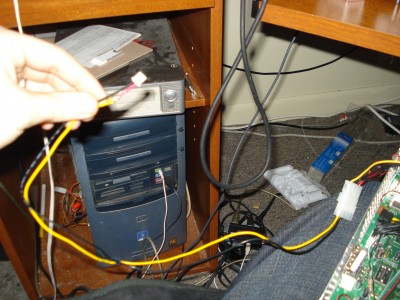

Description:
-showing Positive and negative wires to attach new LEDs
Filesize:
3.04 MB
Viewed:
427 Time(s)

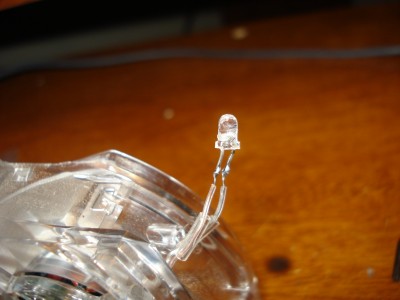

Description:
New Led Attached
Filesize:
2.32 MB
Viewed:
442 Time(s)
Description:
All LEDs Replaced and tested
Filesize:
2.8 MB
Viewed:
445 Time(s)
SCARFACE Administrator
Joined: Feb 06, 2007 Posts: 2470 Location: Minnesota, USA XP: 58,502
Posted: Wed May 28, 2008 5:28 am Post subject:
looking good so far. wish you had the green whisper fans huh then u can just swap out the leds or the whisper max has all 3 colors . _________________________________________________________ The one the only Scarface!!
Xboxexpert 360-HQ Enthusiast
Joined: May 21, 2008 Posts: 31
XP: 0
Posted: Wed May 28, 2008 6:42 am Post subject:

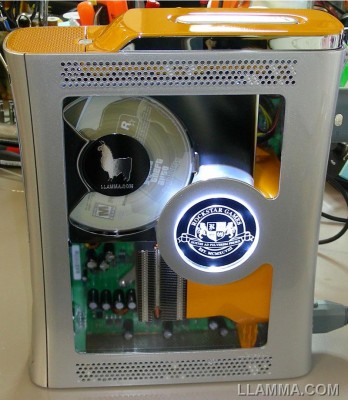

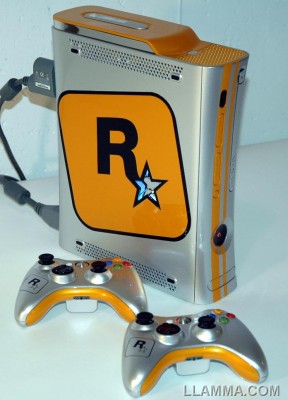

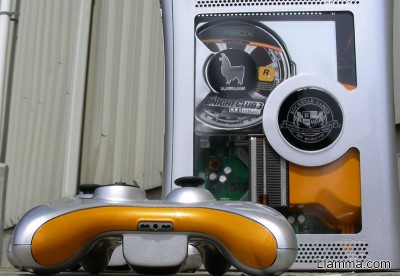

I dont know if you've seen this before but check it out...maybe you can replicate it.
_________________________________________________________ Check out my Internal & External Watercooled Xbox 360 over at my forums.
DigitizdSoldier 360-HQ Experienced
Joined: Apr 26, 2008 Posts: 146 Location: Washington XP: 0
Posted: Wed May 28, 2008 6:50 am Post subject:
yeah ive seen it but i dont want to replicate it it gave me the idea of doing the specific case but i have my own spin for it
DigitizdSoldier 360-HQ Experienced
Joined: Apr 26, 2008 Posts: 146 Location: Washington XP: 0
Posted: Thu May 29, 2008 6:17 am Post subject:
So i finally got the bugs worked out of the new cathods seems i was having a grounding issue im putting in the case but you can see them in my previous post thats why i havent included a pic of the on in this one

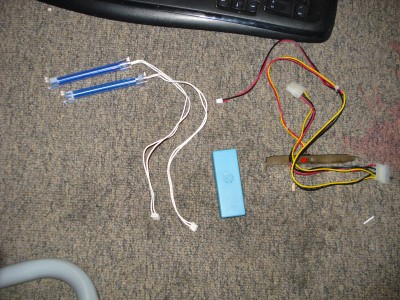

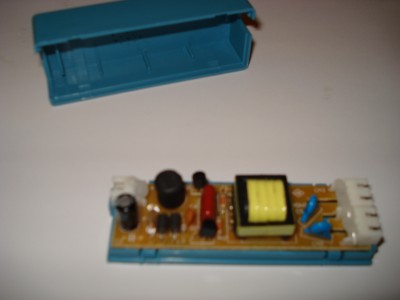

Description:
Cold cothode kit
Filesize:
3.1 MB
Viewed:
420 Time(s)
Description:
power cable with switch
Filesize:
322.55 KB
Viewed:
383 Time(s)

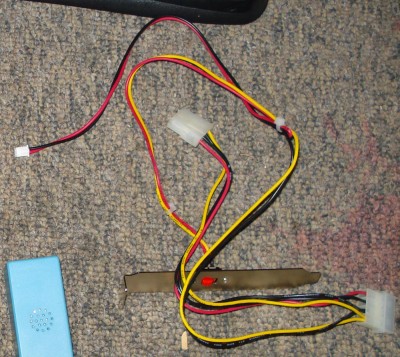

Description:
power cable after taking switch off and extra molex off
I can not stress enough how much voltage goes through those caps on the board for the Cold Cathode. I in no way would ever reccomend putting that bare where you have it. That is a fire hazard in every sence of the word. My professional opinion is no one attempt that including yourself. Move it and shield it. You will create a massive surge that could blow a hole in the 360 motherboard if any part of that touchs just a resistor underneath it. _________________________________________________________ Check out my Internal & External Watercooled Xbox 360 over at my forums.
SiK_WiD_iT Moderator
Joined: Jan 25, 2007 Posts: 1626 Location: Big Stone Gap, VA USA XP: 50,172
Posted: Thu May 29, 2008 6:59 pm Post subject:
looks good so far just dont blow a hole in your mobo lol better move it man before summin bad hapens _________________________________________________________
