Posted: Mon Jul 02, 2007 4:18 am Post subject: My Xbox 360 themed Xbox 360
Hey Guys,
New to this forum.
Here is my modded 360
Description:

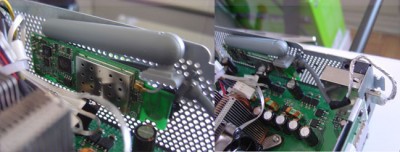

Lastly I internalized a wireless adapter. Didn't have much use of USB ports in the front and then had the back one free so I stripped down the USB connector on the adapter and wired it from inside.
Filesize:
78.98 KB
Viewed:
453 Time(s)
Description:

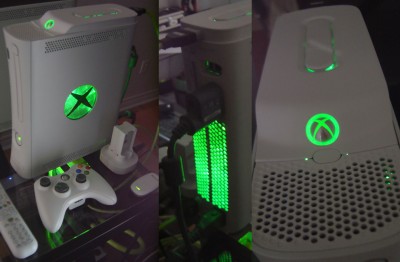

Added LED's but kept them subtle but effective.
Filesize:
482.98 KB
Viewed:
510 Time(s)
Description:
Added a bit of cooling mods. Not much because by luck, knock on wood, my 360 runs quite cool. Will later add heatsinks to the chips.
Filesize:
134.62 KB
Viewed:
531 Time(s)
Description:
Filesize:
54.3 KB
Viewed:
453 Time(s)
Description:

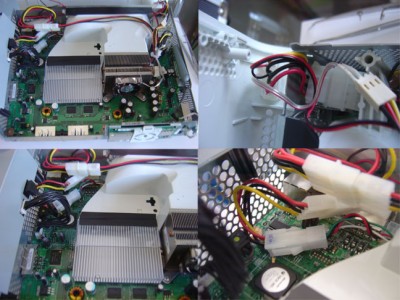

To my surprise the DVD drive is actually quieter working off of them and I can power all my mods inside of the Xbox, as well as giving my Talismoon Whisper fan a 12 volt source without tapping into the Xbox 360 power. I even have my hard drive powered by
Filesize:
86.95 KB
Viewed:
497 Time(s)
Description:
Filesize:
98.44 KB
Viewed:
436 Time(s)
Description:

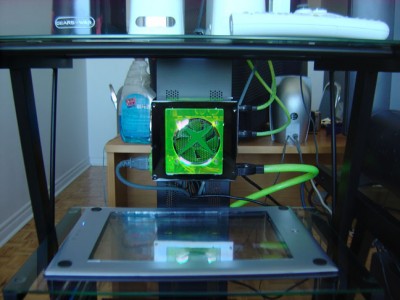

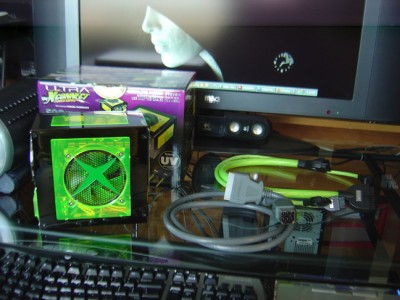

I also used Talismoon's PSU ENERGYZER with a kick ass 500W Ultra power supply I modded to fit into the Xbox 360 theme by adding another Xbox Grill. I know there are mixed views on the Talismoon PSU ENERGYZER but it works awesome with the Ultra PSU and I l
Filesize:
112.06 KB
Viewed:
453 Time(s)
Description:

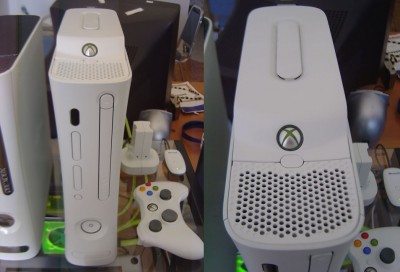

Took the XBOX emblem from my stock remote control since I purchased the universal and the clear ring I didn't use from a replacement controller shell. Drilled a hole and inserted them.
Filesize:
125.83 KB
Viewed:
452 Time(s)
Description:

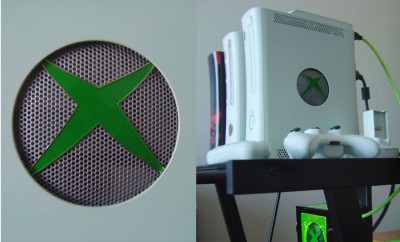

Cut out a hole and inserted XBOX 360 themed Grill and a 80mm Silver Steel Mesh Filter.
Filesize:
119.18 KB
Viewed:
414 Time(s)
Description:

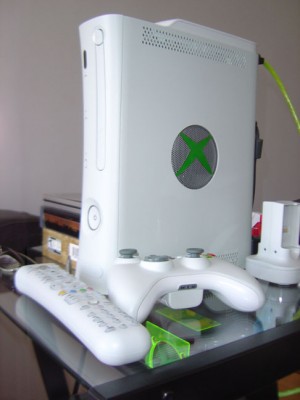

My Modded Xbox 360
Filesize:
65.27 KB
Viewed:
602 Time(s)
Last edited by 360-Sagacious on Mon Jul 02, 2007 4:59 am; edited 1 time in total
forahobby Administrator
Joined: May 22, 2003 Posts: 23948 Location: NSW, Australia XP: 3,060,914
Posted: Mon Jul 02, 2007 4:33 am Post subject:
Hey 360-Sagacious and welcome to HQ..
Nice mods you have done there.. I particularly like the jewel mod you did on the hdd area.. extremely professional bro.. thumbs up..
I have been working on a Street Fighter Arcade stick for xbox 360 (wireless).. I bought a xbox 1/ps2 compatible stick and it works great. I was also going to add the joypad jewel function to the top but havent gotten back to it.
Did you use a existing joypad jewel to add to your hdd area?
anyway, hope you enjoy the site and we see more from you.
I used the jewel from my original 360 Remote. I purchased the Universal one so had no use for it and used the jewel.The outside ring I used one from a Controller replacement shell (Used the original ring on the new shell). Then wired LED to it. It also flashes when the HDD is accessed.
deps 360-HQ Experienced
Joined: Jan 29, 2007 Posts: 187 Location: san antonio texas XP: 0
Posted: Tue Jul 03, 2007 12:23 am Post subject:
this is really nice, very subtle but definatly intricate....i like it.. _________________________________________________________ http://www.myspace.com/discardedtelepathy <--my music, please let me know what you think...
http://www.myspace.com/monotrioTX -<-- my rock band, add us if you like rock and roll!!
This is the first time i have seen a white case i like, with all that neon green its hot, killer job bro for real.
XBOXHQ4LIFE 360-HQ Elite Member
Joined: Nov 30, 2006 Posts: 286
XP: 0
Posted: Sat May 31, 2008 9:44 am Post subject:
its very nice work indeed but i'v seen this on the internet the guy had mixed reviews btw any chance of posting new pics those are kinda outdated to me that is lol, or a video i would deftianly like to see the green leds
Too bad he hasn't posted in almost a year. I doubt he'll ever come back to update this topic lol. _________________________________________________________
