TS-H943 DVD Drive Firmware Pinout (alt. points)
TS-H943 DVD Drive Firmware Pinout (alt. points)
Published by Dark Fly on 2007-03-14
Category: Technical | Page Views: 7494

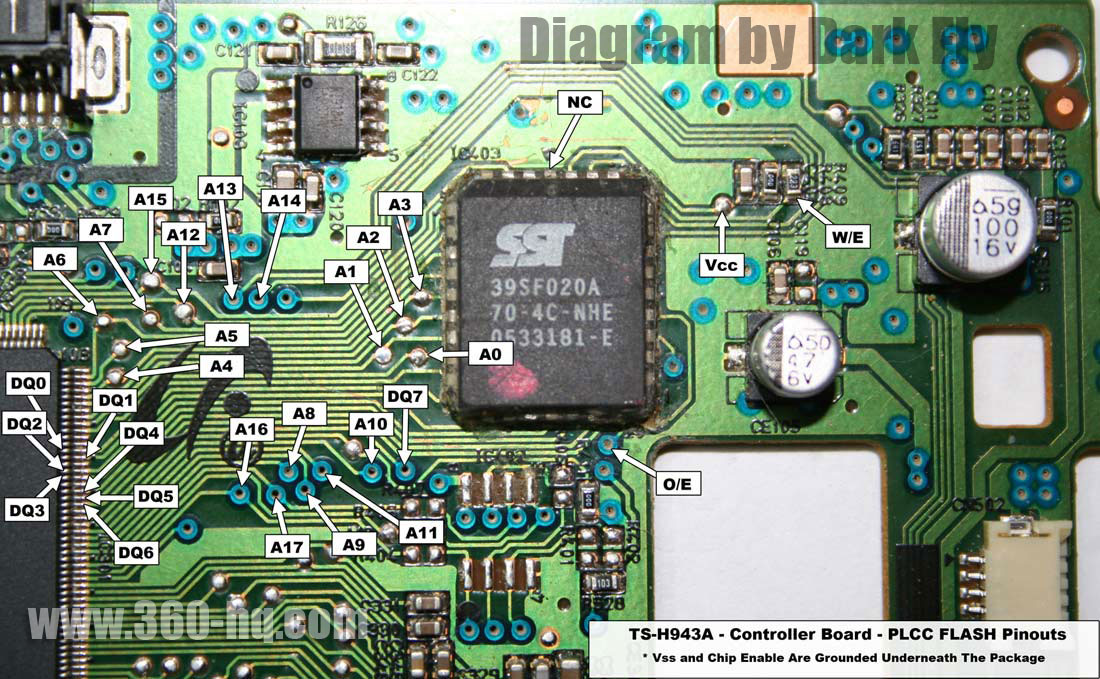

When removing the epoxy from under the PLCC package a few pads lifted off the board so I had to trace them out to repair them. I made a diagram of the pinouts to test points on the board, this might come in handy in the future.
