Accessing/Rebuilding your Xbox 360 HDD

Accessing/Rebuilding your Xbox 360 HDD
Published by forahobby on 2006-09-09
Category: HardDrive | Page Views: 88193

Tutorial By: WunSick
Original tutorial and images by WunSick with additions by forahobby.

Introduction
This tutorial will explain in detail how to gain access to your xbox 360 harddrive and transfer files or make a backup of things using some pc tools like x360tool..

Scenario
So, let's say your overwriting some files and you loose alot of your gamerpics, and demos and such, in fact you ruined your drive and your having reading problems specially with say... Oblivion... Happened to me! Hell, maybe you just want to keep your drive nice and tidy... well ill show you the steps necessary..

Required Tools
- x360tool ( Download )
- Xplorer360 ( Download )
- Drive hooked to PC ( use whatever method u wish )

Installing PC Software
1. Download and install x360tool onto your PC
2. Download and isntall Xplorer360 onto your PC

Connect Xbox 360 Hard Drive to PC

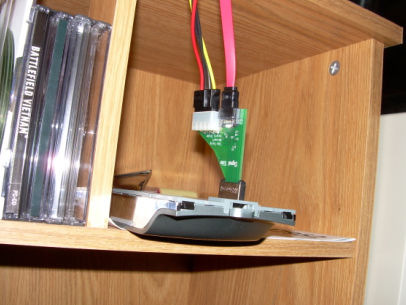

1. Connect the Xbox 360 Hard Drive to your PC..



Now if your reading this, im sure you already know how to hook the drive up to your PC, so lets skip the pleasantry and dig right in shall we?

Accessing files on the Xbox 360 Harddrive
1. Start the Xplorer360 software on your pc.

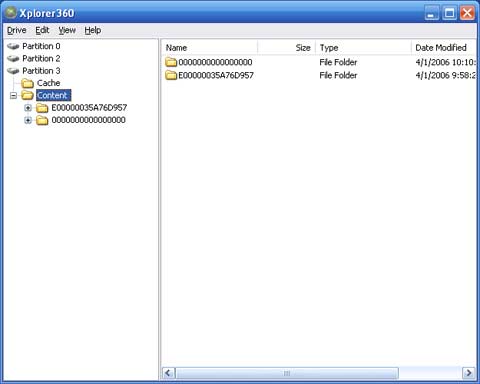

2. Expand 'Partition 3' as shown in the example image and browse for the 'Content' folder. Your xplorer360 software should now look like the image below:



3. Look for a folder that starts with E000000 and followed by what appears to be random numbers and letters, this is a Gamertag folder. This Xbox 360 Gamertag folder on your xbox 360 hard drive contains save games, and your main account information for that gamertag. Your folder name will differ from mine , so just look inside it and you should find a folder called FFFE07D1 which is the folder that contains all your account information inside the 0010000 folder ( 0030000 explained below).

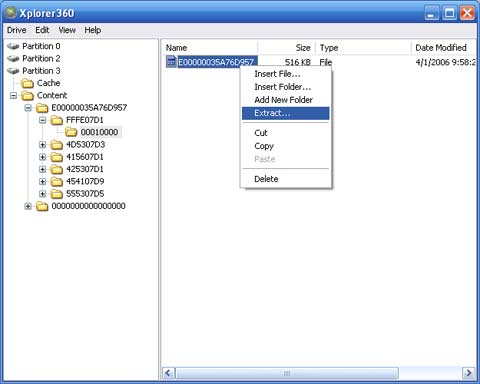

4. Right Click the file as shown and choose Extract like the example screenshot below.



5. When you overwrite this file, when say, copying a buddies content, this is when game booting, and gamerpics, and settings start to wig out. So be careful!! My oblivion disc wouldnt boot unless i had the HDD off, i fixed this, and we are all clear sailing.

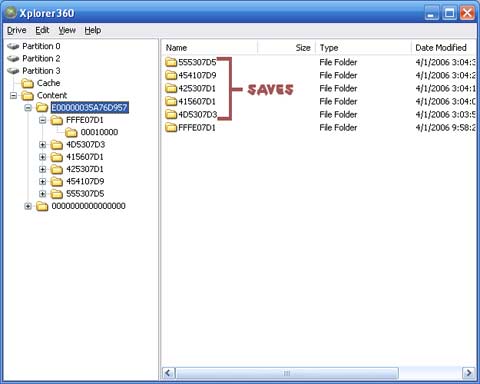

6. Alright, now aside from the FFE07D1 folder, there should be a number of other folders, one for each game u own. These folders are for the save games that are stored for that specific Gamertag. Check the image below, if i were you, id back those babies up! Personally i just extracted the whole E000000####### folder, but for tutorials sake, best you do it in parts so you learn what each folder is. Mine are listed below.



7. Now if you really look inside each folder, some of them have the saves named pretty well so you might not have any issues identifying which is which... BUT if you do... you can launch my x360tool up and check out the files. Extract one, and open it in x360 tool. Check below for two examples;

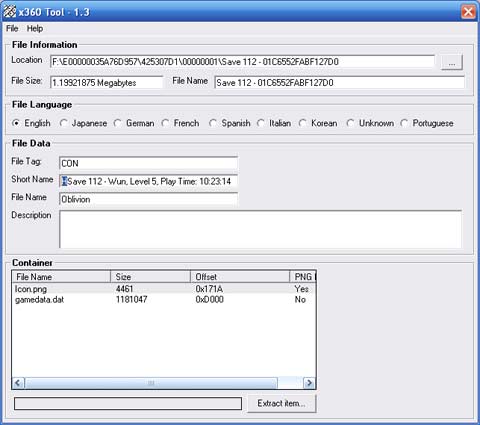

Oblivion Game Save Shown in Example Image

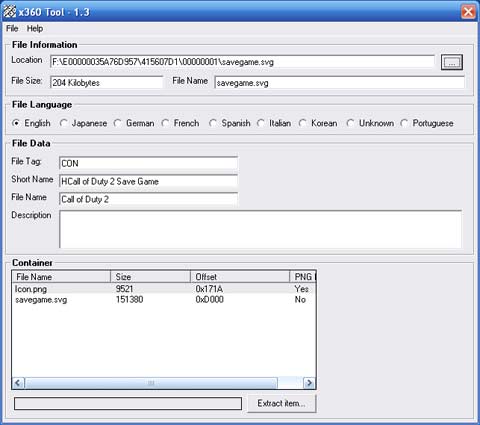

Call of Duty 2 Game Save Shown in Example Image


8. As you can see it opens pretty much everything up ok.. Alright, now inside the E000000####### and inside the FFE07D1 folder, you will see 0030000... This folder holds SOME of your themes, most of the downloaded themes are in their own folders scattered in the Content�00000000000000 folders so use x360tool to poke around.

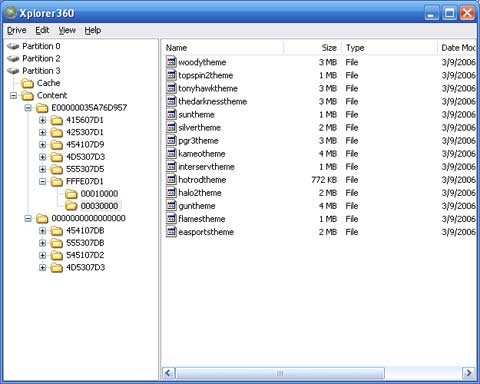

This folder holds SOME of your themes on your Xbox 360 Hard Drive


So got all your stuff extracted and saved in a safe place and know exactly where they go?? Wicked! Lets continue...

Rebuilding your Xbox 360 Hard Drive
Now its time to format your drive...

1. Boot up your Xbox 360 with the drive in it
2. Go to the System tab
3. Scroll down to Memory and select your drive.
4. Go ahead and format it.
5. Once its done, you will need to follow some steps as it will ask you to lock the drive to your specific serial number for your xbox 360.

Once thats done, you can do a number of things...
- Recover gamertag from xbox live (will not recover your saves, themes, or gamerpics, atleast not for me)
- Transfer the ***** yourself

Follow the steps above putting your information back and your all set. I saved all my themes, and saves, that is all that is really needed. If you wish to save some downloaded gamerpictures, you will have to hunt for them as they are not all stored in the same place, if you extract the majority of your xbox hard drive, and search through your files with x360tool, you can find them and pop them back on your drive in the right locations.

Load up your xbox 360 and have fun!

Happy Spring Cleaning!
WunSick

Tutorial By: WunSick of Devo-E
Original tutorial and images by WunSick with additions by forahobby.


Related URL: WunSick of Devo-E
