How to iXtreme Burner Max

How to iXtreme Burner Max
Published by X_Splinter on 2011-11-04
Category: Firmware | Page Views: 12141

Introduction


This tutorial explains how to flash your iHas drive with iBurner Max 1.0. The original tutorial was provided by C4eva, and the photos I will be using were also provided by him.

Please be aware that you will need purchase a compatible drive:
  • LiteOn iHas124-XX B
  • LiteOn iHas224-XX B
  • LiteOn iHas324-XX B
  • LiteOn iHas424-XX B
  • LiteOn iHas524-XX B
  • LiteOn iHas624-XX B

(The XX varies – the important part is the firmware version B: denotes chipset)

THIS TUTORIAL SHOWS THE PROCESS FOR 324! ENSURE YOU USE CORRECT
UPGRADE.EXE AND CORRECT FW FOR YOUR DRIVE! - The process is the same for the other drives.

360-Hq.Com and it's staff DO NOT and WILL NOT take responsibility for users who damage their own equipment in any way, shape or form.

Things You Need:
    1.1. A LiteOn iHas compatible drive
    1.2. A Computer with SATA connection
    1.3. iXtreme Burner Max firmware pack

Backup and Flashing:

1- Connect your Lite-on iHas drive to your motherboard (X360USB Pro works too)

2- Download iXtreme Burner Max firmware pack (use our VIP server http://www.360-hq.com/postt5223.html)

3- Make windows recognize your drive, right click on the drive icon and press eject to see if it is working.

4- Now run the upgrade.exe relevant to your drive (could be AL0S.exe, GL0S.exe, etc depending on the drive model)

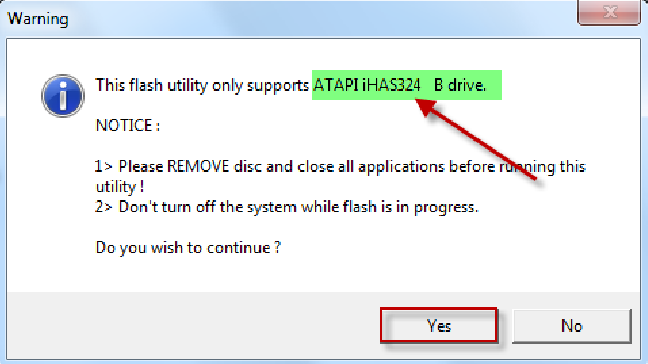

5- (Ensure it is for YOUR iHas drive before you continue)Click Yes Button, Once complete it will ask you to reboot the PC (do so before you continue!)


6- For safety – you should backup your current drive firmware and EEPROM.

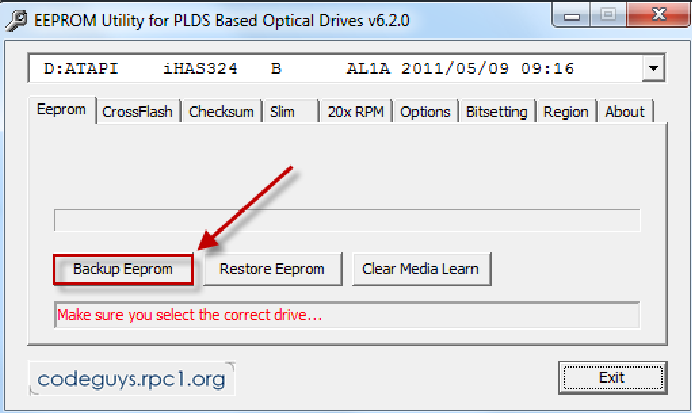

Now open the EEPROM Utility – Ensure the correct Drive (iHas)


press the Backup Eeprom button and save the file

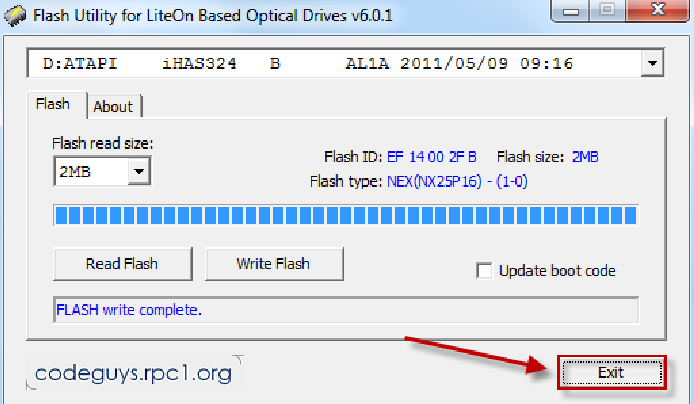

7- Now open Flash_Utility.exe, check again if it is the iHas that it's selected and Click the Read Flash Button (should already have automatically selected the 2MB Option)
Save it and dont close the app

8- Click Write Flash Button, select the Burner Max firmware of your drive.
If you are 100% sure you have chosen correct file Click Yes Button


Click Exit!

YOU ARE DONE! You now have a iXtreme Burner Max drive
